3500 KVA Multi-Tap w/ Fans

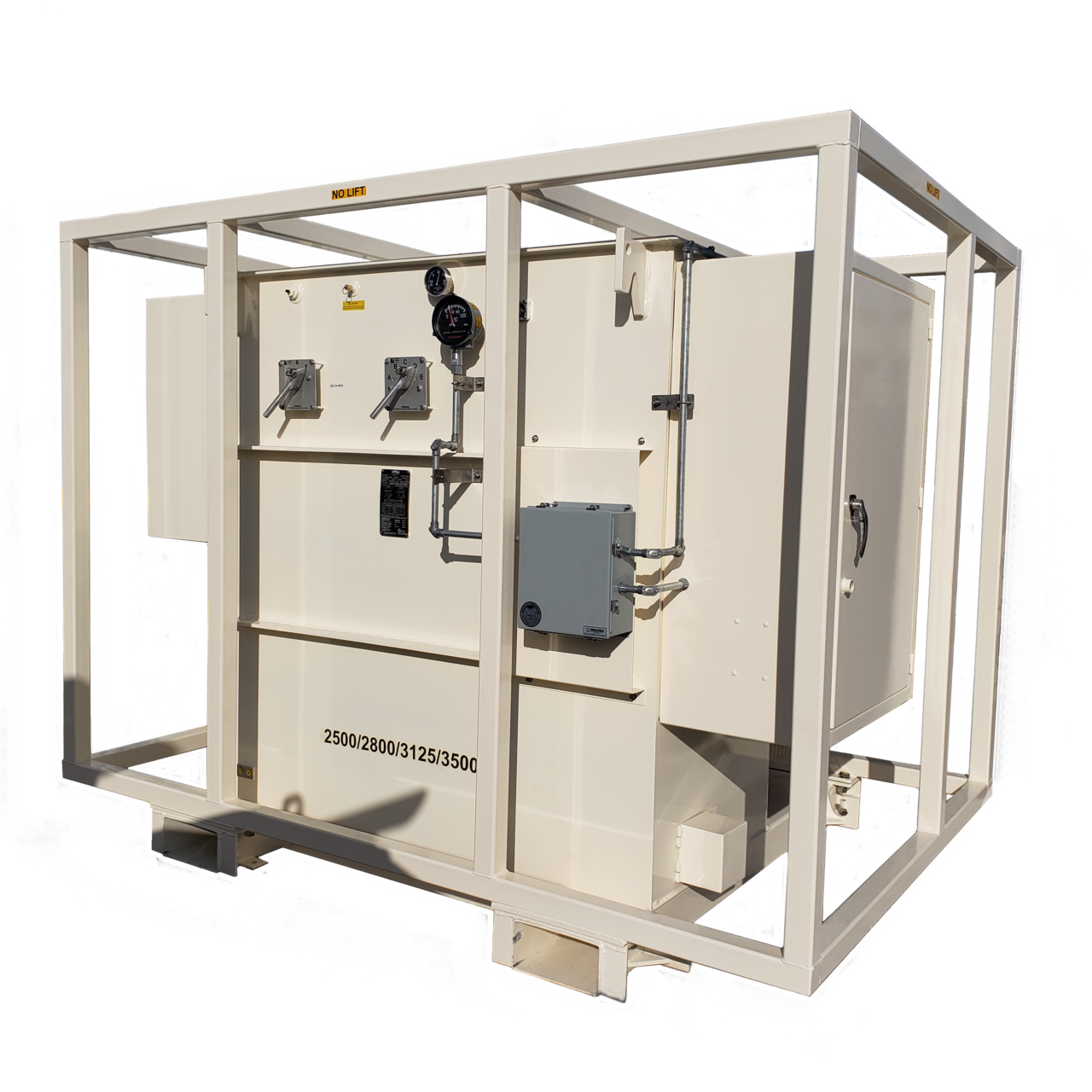

A Picture of a transformer.

Type:

Multi-Tap Substation

kVA Rating:

2500/2800/3125/3500

Color:

White

HV Rating:

2400▲ x 7200▲ | 4160Y/2400 x 12470Y/7200

LV Rating:

480Y/277 x 600Y/346 | 480Y/277 x 600Y/346

Taps:

2400-8320-7970-7620-7200-6928 | 4160Y-14400Y-13800Y-13200Y-12470Y

Phases:

3

Rise:

55/65°C

Hz:

60 Hz

Cooling Classification

ONAN/ONAF

BIL:

95kV/30kV BIL

Impedance

5.75% at 75°C
